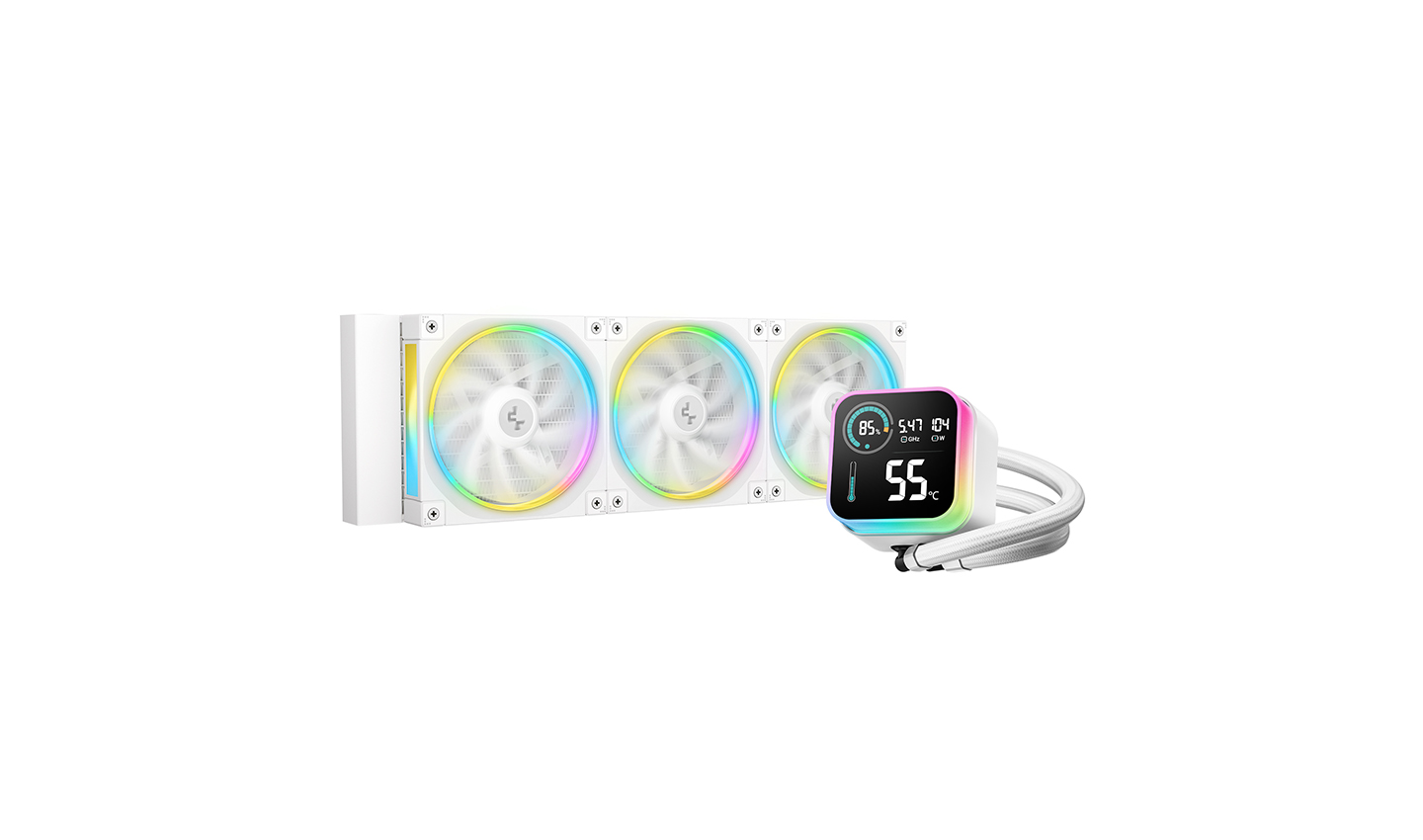

LQ360 WH

SEGMENT LCD SCREEN ERA

5 PRO GENERATION PUMP

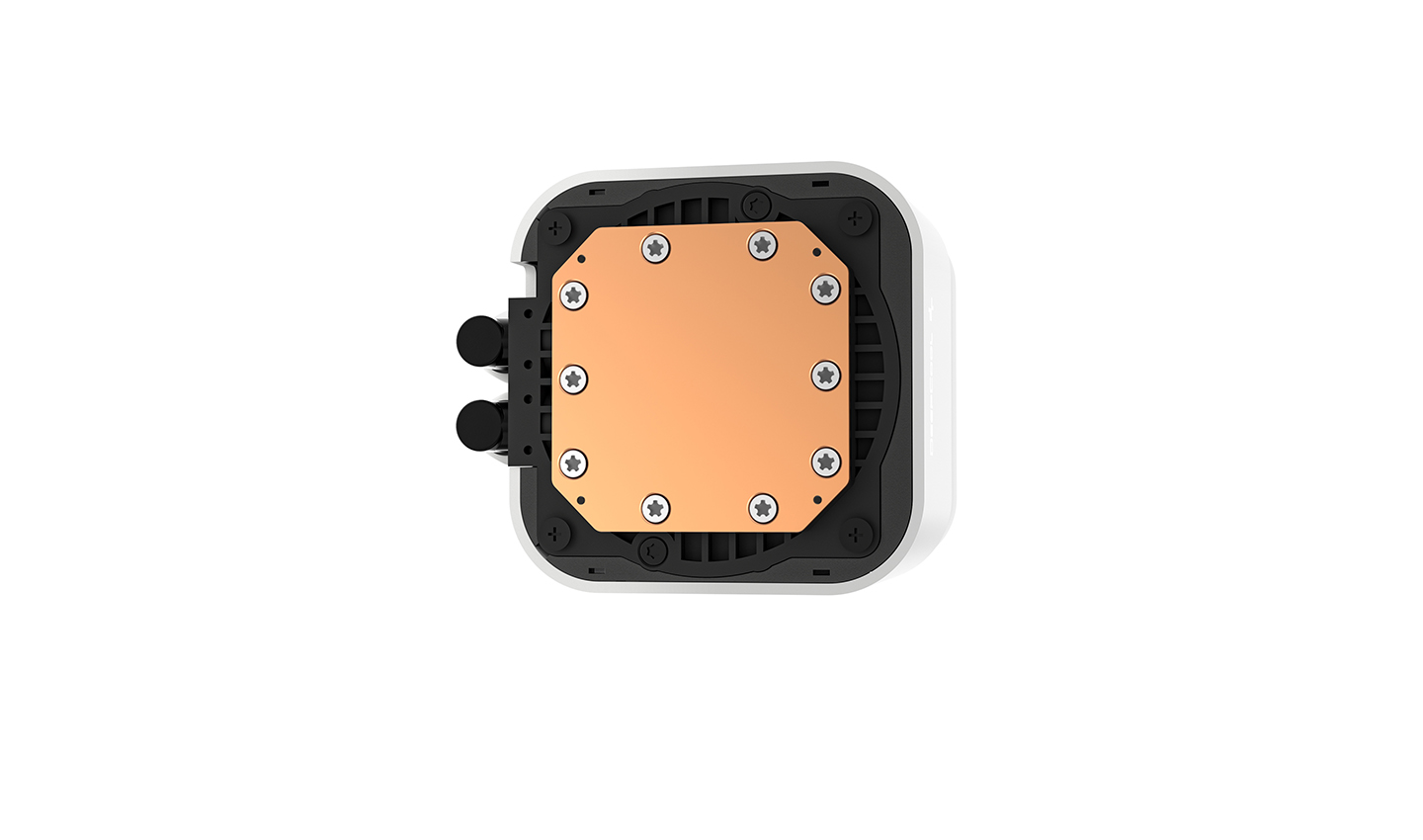

Built on DeepCool's optimized 5 PRO generation high-performance water pump, the LQ360 WH brings cooling modern power-hungry CPUs to a new level with its FOC (Field Oriented Control) Closed-Loop Control. The optimized pump design features an efficient 3-phase, 6-slot, 4-pole motor that rotates up to an astounding 3400 RPM.

LET IT ROTATE

The magnetic pump cover introduces quick detachment and tool-free adjustments, with 360° rotation for perfect alignment in any build. Its precision-engineered pogo pin contact ensures secure and reliable connection, redefining convenience in liquid cooling.

DeepCreative: THE CONTROL CENTER

Bring all of the great features of the LQ coolers alive in DeepCreative. Through this comprehensive application, you can view real-time statistics of your system, look up system details, and have full access to compatible devices. It is here that you can choose to have Halo ARGB accents synced to your motherboard's ARGB controller or use the thermal color warning system. The software will get rolling updates, so expect expanding features in the near future.

CPU Usage + Multi Color Circular Status Panel

CPU Frequency GHz

CPU TDP Wattage

CPU Temperature Status with Color Indicator in ℃/℉

℃

℉

*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie

SYNC UP YOUR SETUP

The ARGB Halo pump head along with a trio of FL12 Fans on the LQ360 WH adds a vibrant glow, transforming your build into a visual masterpiece. With full customization at your fingertips, you can easily control and synchronize the RGB lighting effects through compatible motherboards and controllers.

Efficient Connectivity:
Utilize the 8-PIN one-for-three cable for streamlined connections.

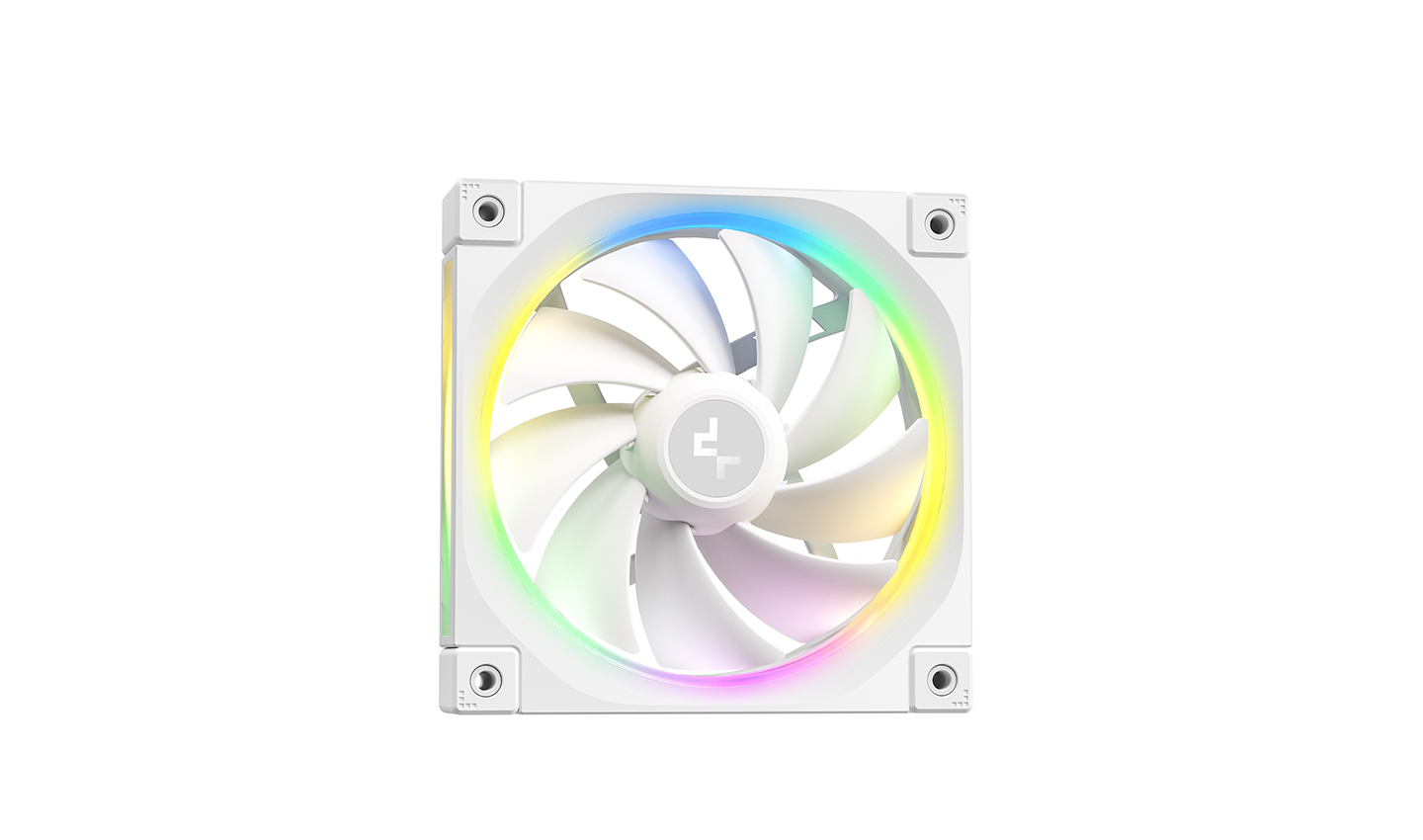

High-Performance Cooling:
Equipped with triple FL12 Fans, ensuring optimal airflow and cooling efficiency.

Advanced Bearing Technology:
Features a Fluid Dynamic Bearing for smooth and quiet operation.

Fan Speed:
Operates at 500~2150 RPM with a tolerance of ±10%.

Airflow:
Delivers a powerful 55 CFM.

Static Pressure:
Achieves 2.82 mmAq for enhanced cooling performance.

Noise Level:
Maintains a maximum noise level of ≤32 dB(A), ensuring a quiet computing experience.

ANTI-LEAK TECHNOLOGY

Incorporating DeepCool's patented Anti-Leak Technology, this system is designed to enhance the longevity and reliability of the AIO. The internal valve actively regulates pressure, releasing excess pressure when it surpasses atmospheric levels. This innovative feature not only extends the lifespan of the AIO but also significantly reduces the risk of leaks.

SIMPLIFIED INSTALLATION

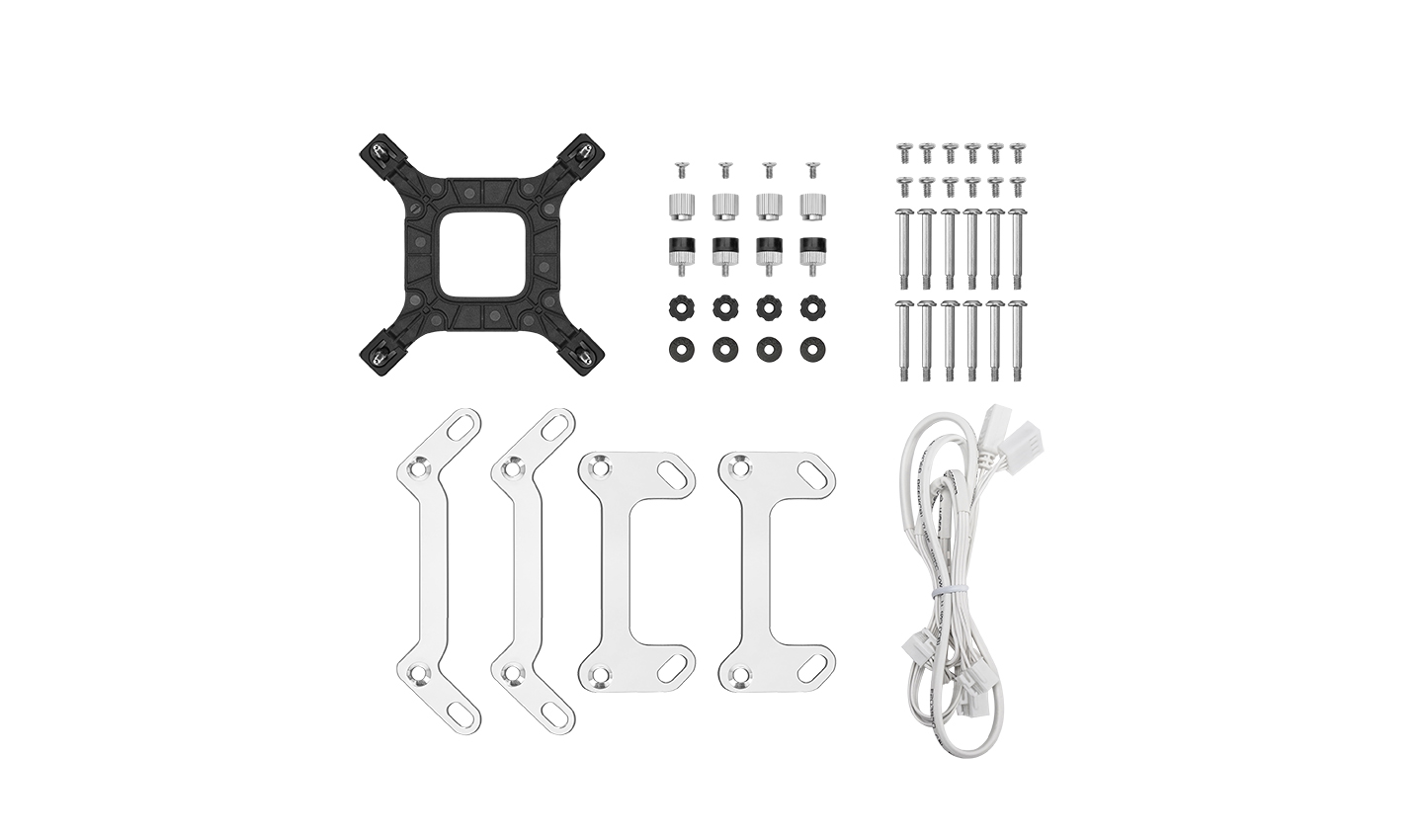

The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LQ360 WH to the latest mainstream CPUs is included in the box, so you are ready to go.

Intel LGA1851/1700/1200/1151/1150/1155
AMD AM5/AM4

Aplicação para

Intel

LGA1851/1700/1200/1151/1150/1155

AMD

AM5/AM4

Especificações técnicas

Peso Líquido	1840 g

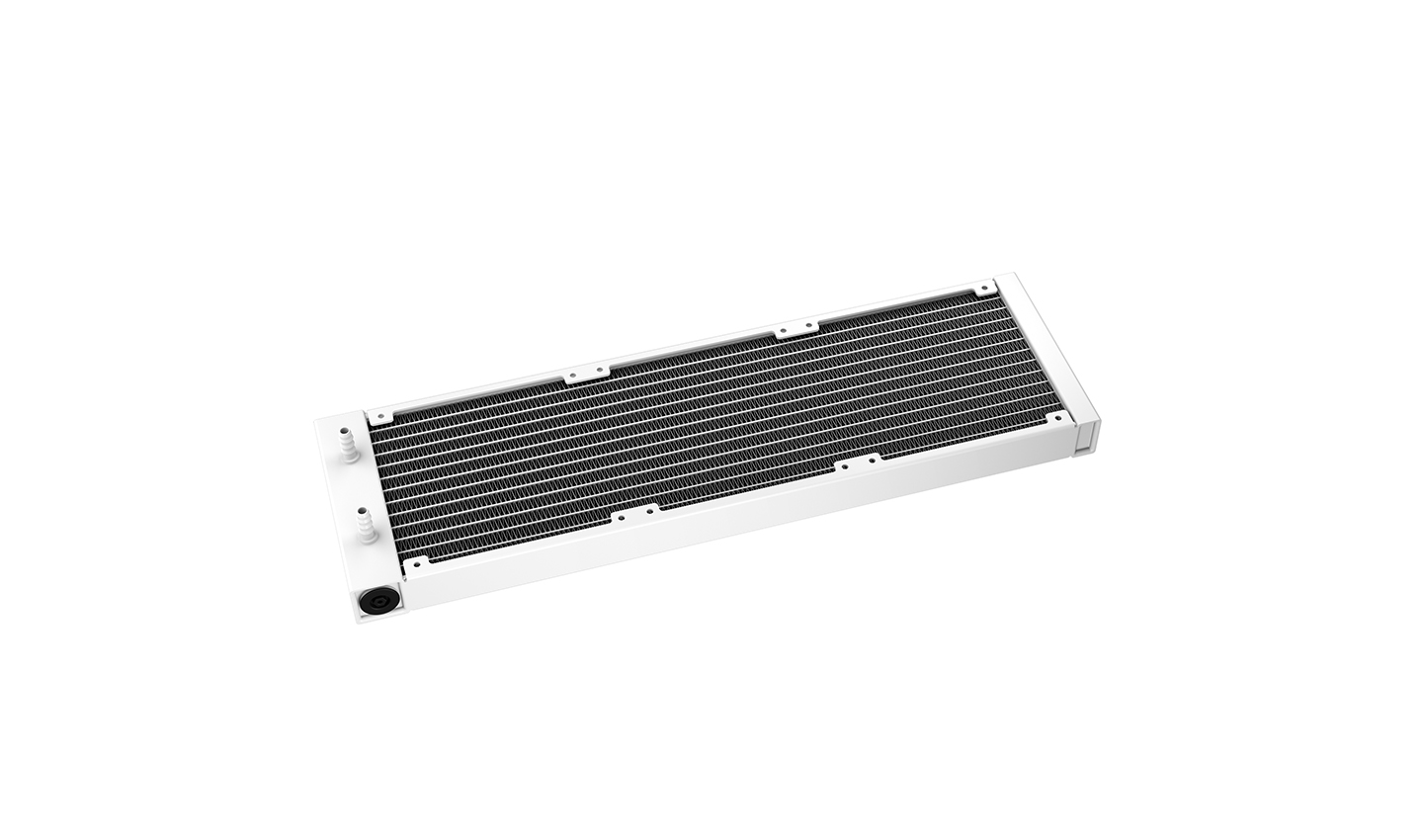

Dimensões do radiador	402×120×27 mm(C×L×A)
Material do radiador	Aluminio
Comprimento do tubo	410 mm
Dimensões da Bomba	89×76×64 mm(C×L×A)
Velocidade da Bomba	3400 RPM±10%
Conector de Bomba	3-pin
Tensão Nominal da Bomba	12 VDC
Corrente Nominal da Bomba	0.35 A
Consumo de energia da bomba	4.2 W
Dimensões do ventilador	120×120×25 mm(C×L×A)
Velocidade do ventilador	500~2150 RPM±10%
Fluxo de ar do ventilador	55 CFM
Pressão de ar do ventilador	2.82 mmAq
Ruído do ventilador	≤32 dB(A)
Conector do ventilador	4-pin PWM
Tipo de rolamento	Rolamento dinâmico de fluidos
Tensão Nominal do Ventilador	12 VDC
Corrente Nominal do Ventilador	0.15 A
Consumo de energia dos ventiladores	1.8 W
Tipo de LED	LED RGB endereçável
Conector LED	3-pin(+5V-D-G)
Tensão Nominal de LED	5 VDC
Consumo de energia LED	2.4 W（PUMP）/ 2.75 W（FAN×3）
Display Type	LED Digital Display
Display Module Tensão Nominal	5 VDC
Display Module Corrente Nominal	0.08 A±10%
Display Module Consumo de energia	0.4 W
Display Area	53.9x49.15 mm
EAN	6933412729280
P/N	R-LQ360-WHDSMC-G-1
